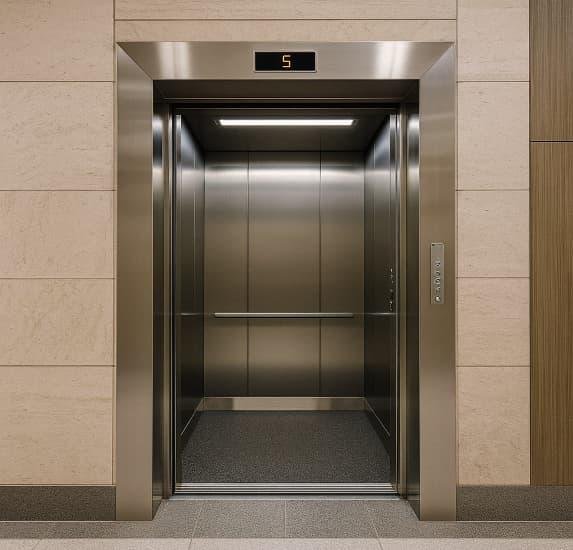

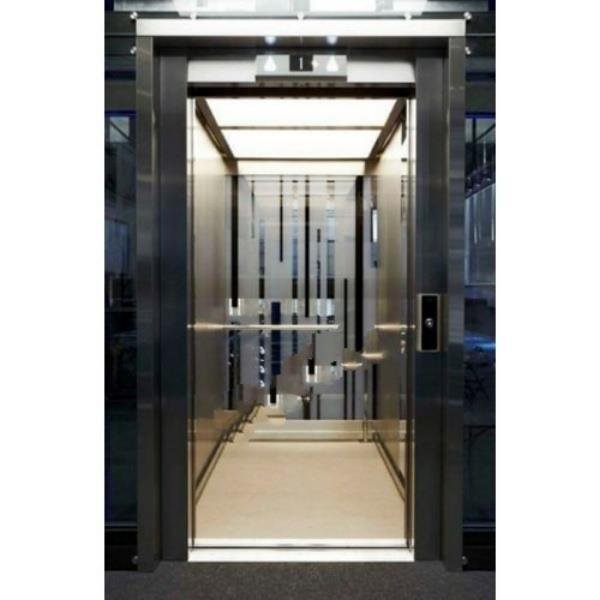

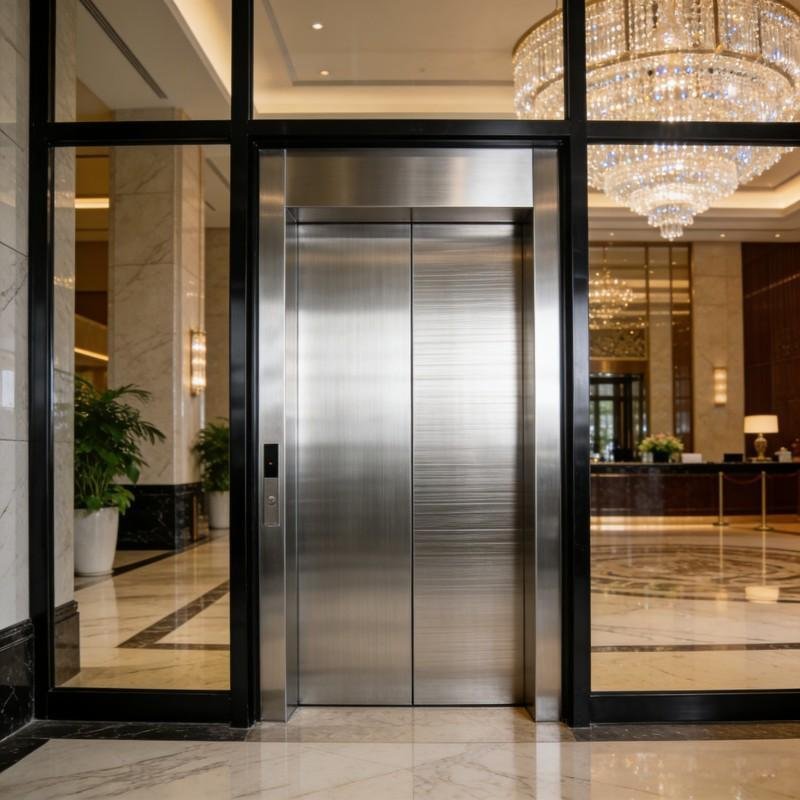

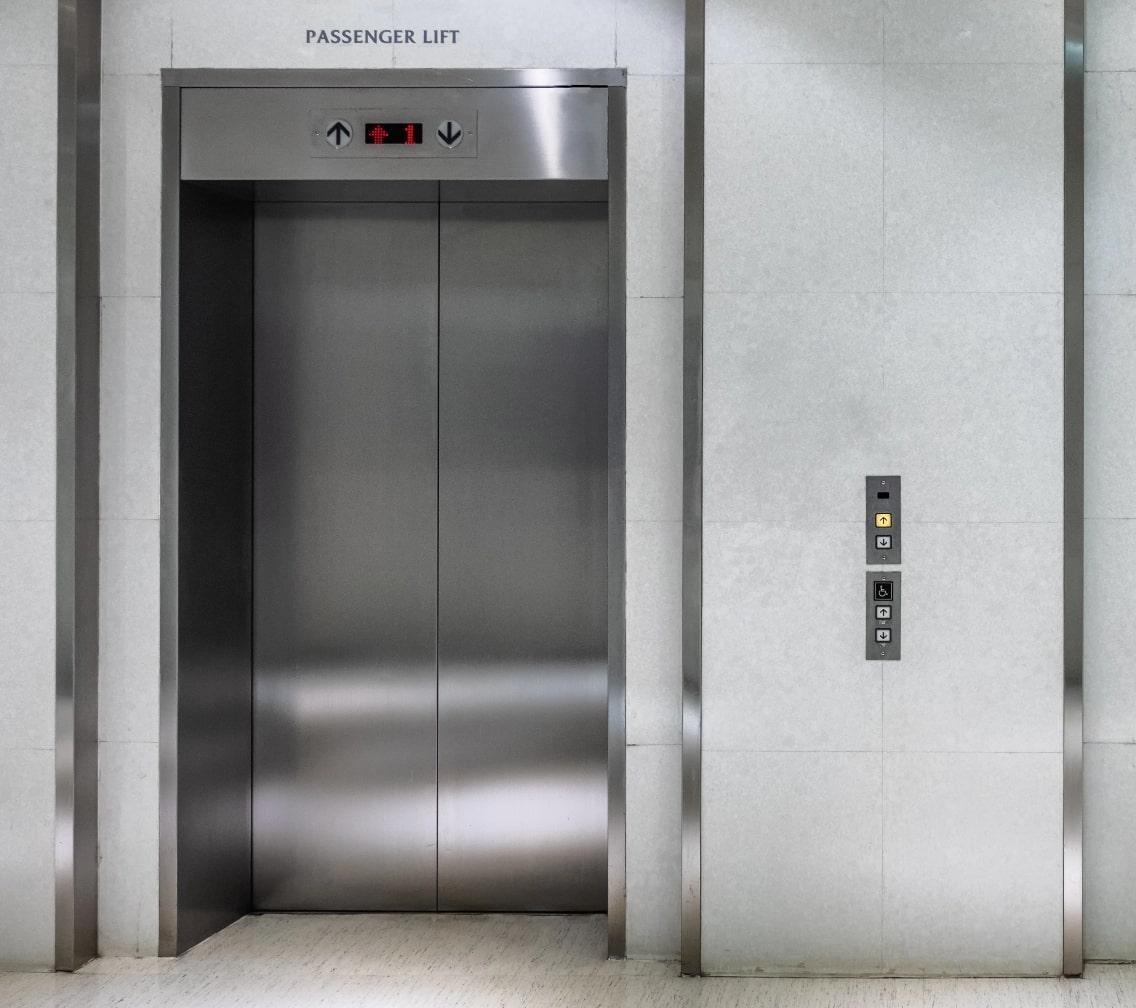

Modern automatic door passenger elevator designed for smooth, safe and comfortable vertical mobility. Available in capacities from 04 to 20 passengers with flexible shaft and cabin dimensions.
| Person |
Weight KG |
Car Inside | Left Well Entrance | Pit | Q.H. | ||
|---|---|---|---|---|---|---|---|
|
Width A |
Depth B |
Width C |
Depth D |
||||
| 4 | 272 | 1400 | 1300 | 800 | 950 | 1500 | 4300 |
| 5 | 340 | 1500 | 1300 | 900 | 1000 | 1500 | 4300 |
| 6 | 408 | 1600 | 1500 | 1000 | 1100 | 1500 | 4400 |
| 7 | 476 | 1600 | 1600 | 1000 | 1200 | 1500 | 4400 |
| 8 | 544 | 1800 | 1700 | 1100 | 1300 | 1500 | 4400 |
| 9 | 612 | 1900 | 1700 | 1200 | 1300 | 1500 | 4400 |
| 10 | 680 | 1900 | 1900 | 1250 | 1300 | 1500 | 4500 |
| 13 | 884 | 1900 | 2400 | 1100 | 2000 | 1500 | 4600 |
| 15 | 1020 | 2000 | 2400 | 1200 | 2000 | 1600 | 4800 |
| 20 | 1360 | 2460 | 2650 | 1600 | 2300 | 1600 | 4800 |
