Weight Drawing Elevator

PASSENGER LIFT
PERSONS KG CAR INSIDE ELEVATOR WELL ENT MACHINE ROOM TYPE OF DOOR
WIDTH A DEPTH B WIDTH DEPTH WIDTH WIDTH DEPTH TYPE
4 272 800 1000 1150 1350 700 1650 1450 MANUAL
5 340 900 1000 1250 1350 700 1750 1450 MANUAL
6 408 1000 1100 1350 1450 800 1850 1550 MANUAL
8 544 1100 1300 1450 1650 800 1950 1750 MANUAL
10 680 1200 1400 1550 1750 900 2050 1850 MANUAL
13 884 1300 1500 1650 1850 900 2150 1950 MANUAL
15 1020 1400 1600 1750 1950 1000 2250 2050 MANUAL
20 1360 1600 1800 1950 2150 1100 2450 2250 MANUAL
Enquiry Now Download Brochure

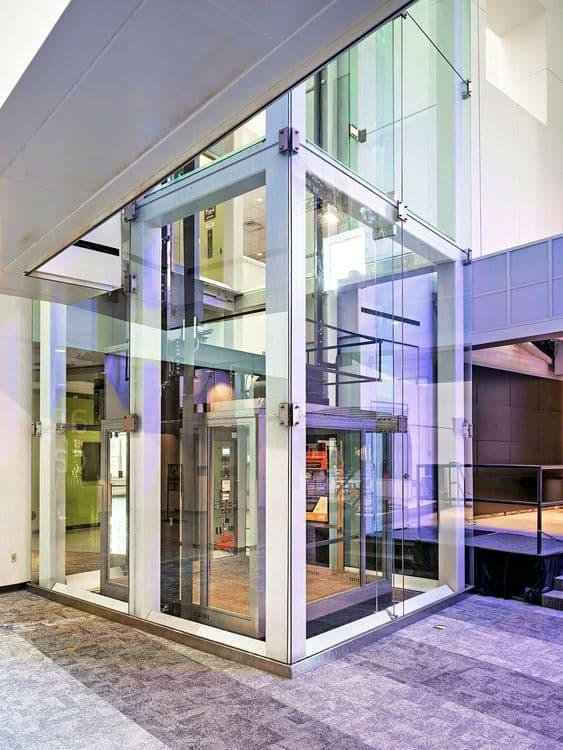

Passenger Lift Technical Specifications

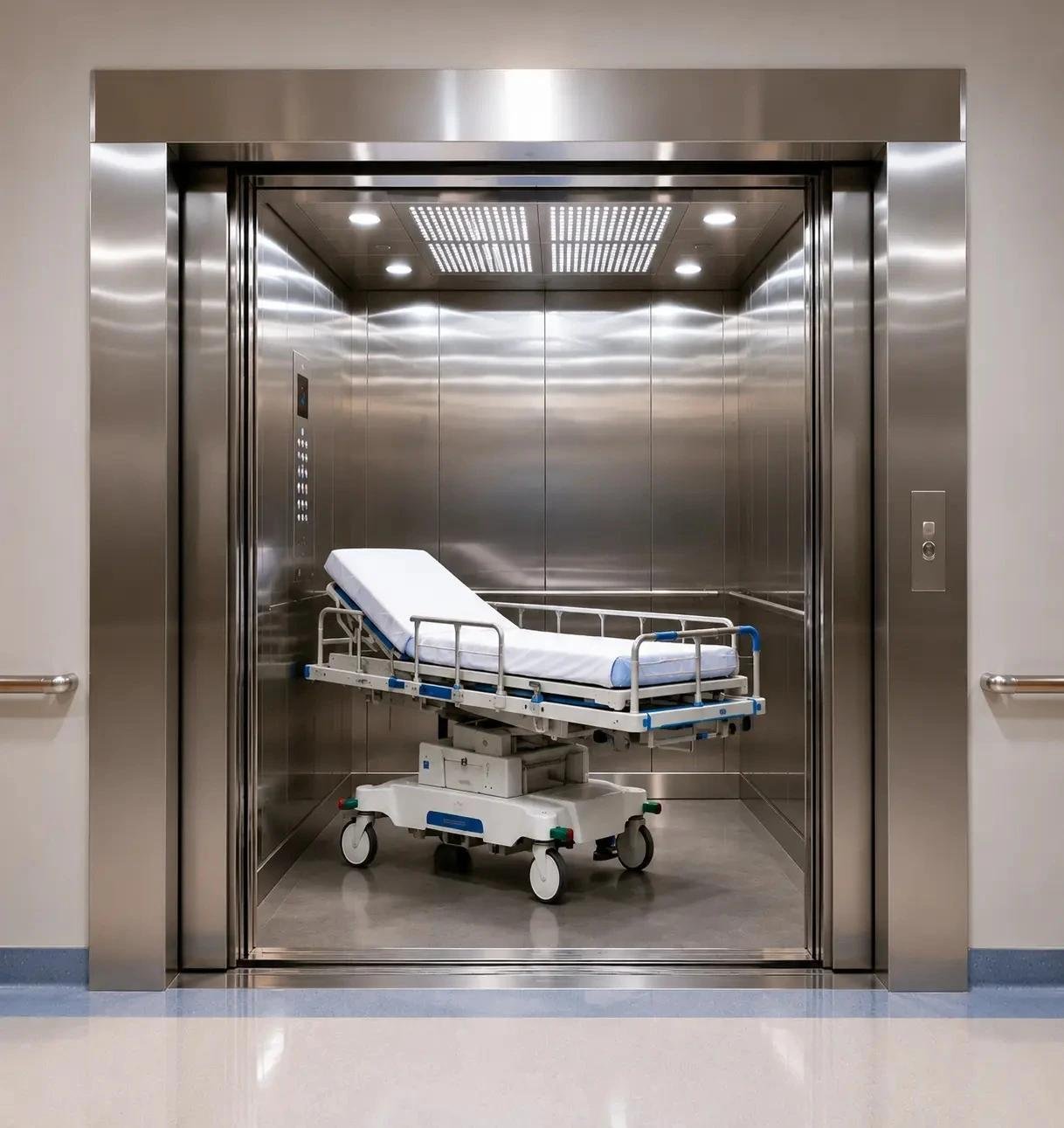

Hospital Elevator Technical Specifications
HOSPITAL ELEVATORS
PERSONS KG CAR INSIDE ELEVATOR WELL ENT MACHINE ROOM
WIDTH A DEPTH B WIDTH DEPTH WIDTH WIDTH DEPTH
15 1020 1100 2500 1800 3000 800 2400 3000
20 1360 1600 2800 2100 3300 1000 2600 3300
26 1768 1600 2900 2200 3400 1200 2800 3500
Enquiry Now Download Brochure
DUMBWAITERS
LOAD KG CAR INSIDE ELEVATOR WELL ENT MACHINE ROOM
WIDTH DEPTH WIDTH DEPTH WIDTH WIDTH DEPTH
100 68 625 625 800 900 600 1200 1300
150 102 625 800 800 1050 600 1350 1450
190 129 800 800 1000 1050 600 1500 1450
300 204 800 900 1000 1200 700 1600 1600
Enquiry Now Download Brochure

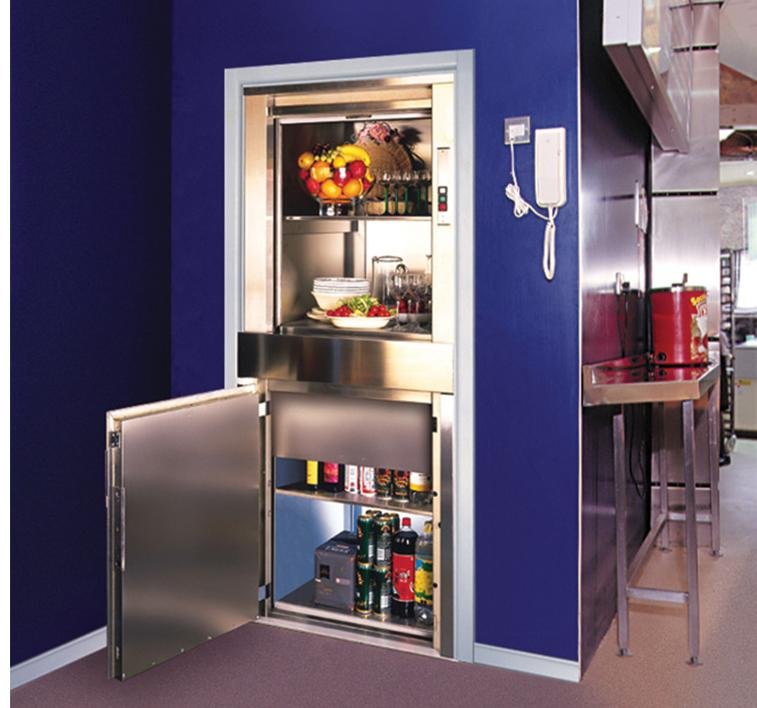

Dumbwaiter Technical Specifications

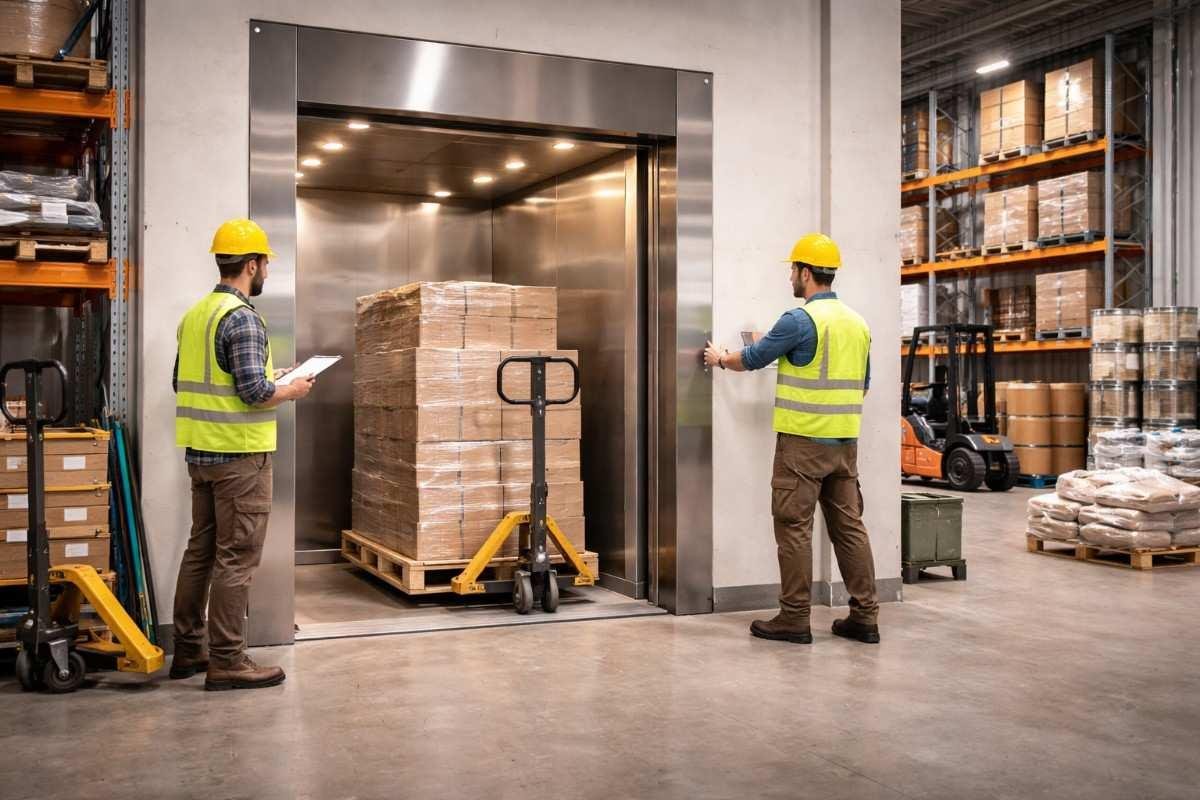

Freight Elevator Technical Specifications
FREIGHT ELEVATORS
LOAD KG CAR INSIDE ELEVATOR WELL ENT MACHINE ROOM
WIDTH A DEPTH B WIDTH DEPTH WIDTH WIDTH DEPTH
1500 1500 1500 1800 2200 2100 1200 2800 2700
1700 1700 1800 2000 2300 2300 1500 2800 2700
2000 2000 2000 2500 2500 2800 1500 2900 3000
2500 2500 2200 3000 2800 3300 1800 3200 3500
3000 3000 2500 3200 3000 3500 2000 3400 3900
Enquiry Now Download Brochure
